Suit Case Luggage Carrier Brushless DC Hub Motor Mini Single Shaft，60H01

suit-case-luggage-carrier-brushless-dc-hub-motor-mini-single-shaft%ef%bc%8c60h01
mini-hub-motor-brushless-gearlesscute-brushless-hub-motor-24v2inch-hub-motor-brushless

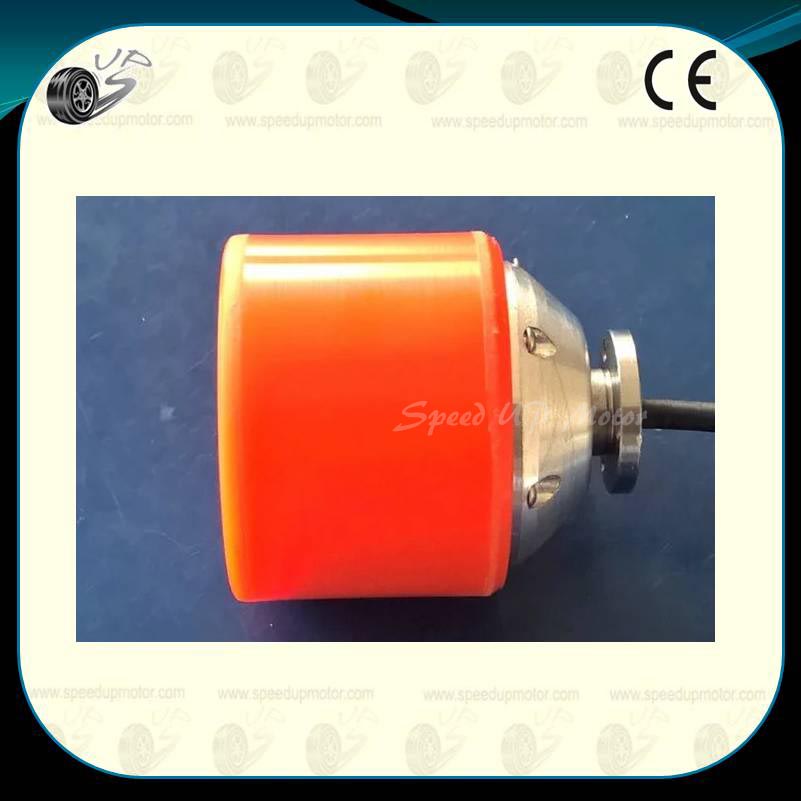

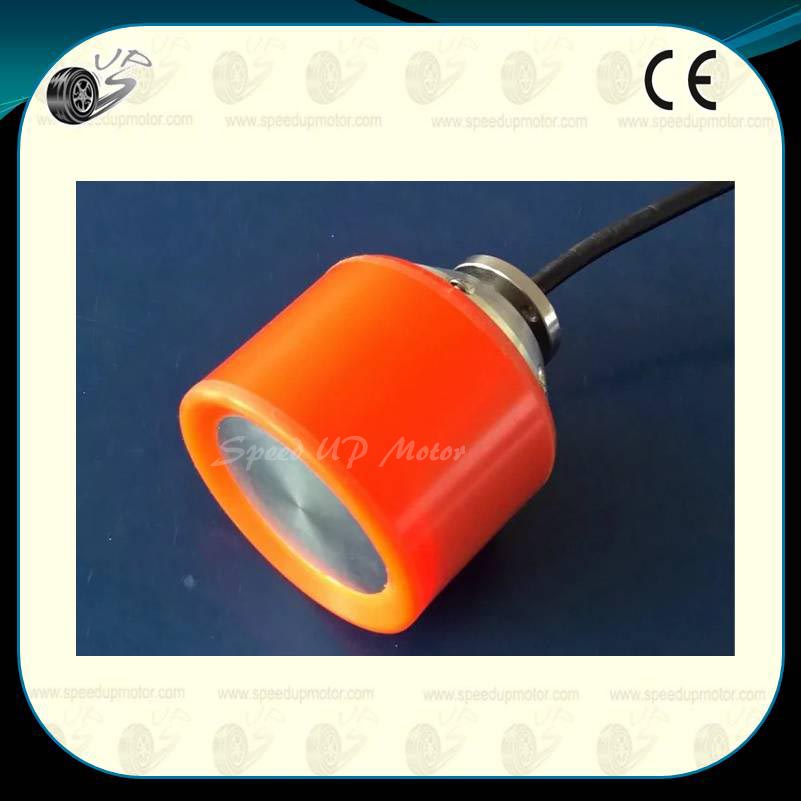

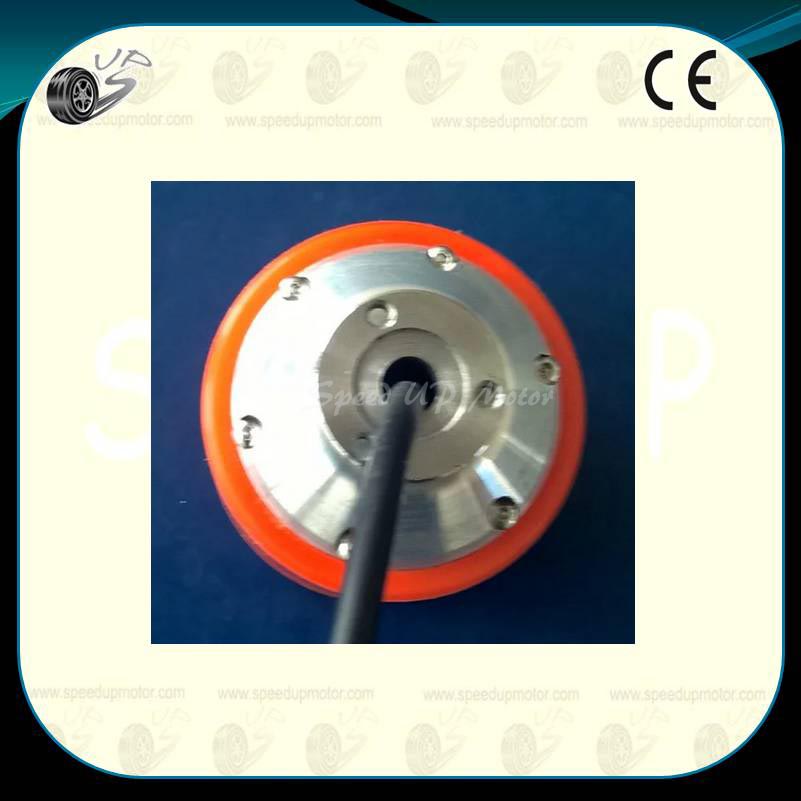

2Inch Mini Hub Motor With PU Tire
24/36/48V     100-200W
Brushless Gearless DC with Single Shaft/Axis

Most use in Suit Case/Luggage Carrier /Electric Scooter/Industry Machine and So on.

Product Description

Specifications:

Voltage:  24V/36V/48V
Power:  100W-200W
Motor Type:  Brushless Gearless Hub Motor
Motor Net Weight:  0.7kgs

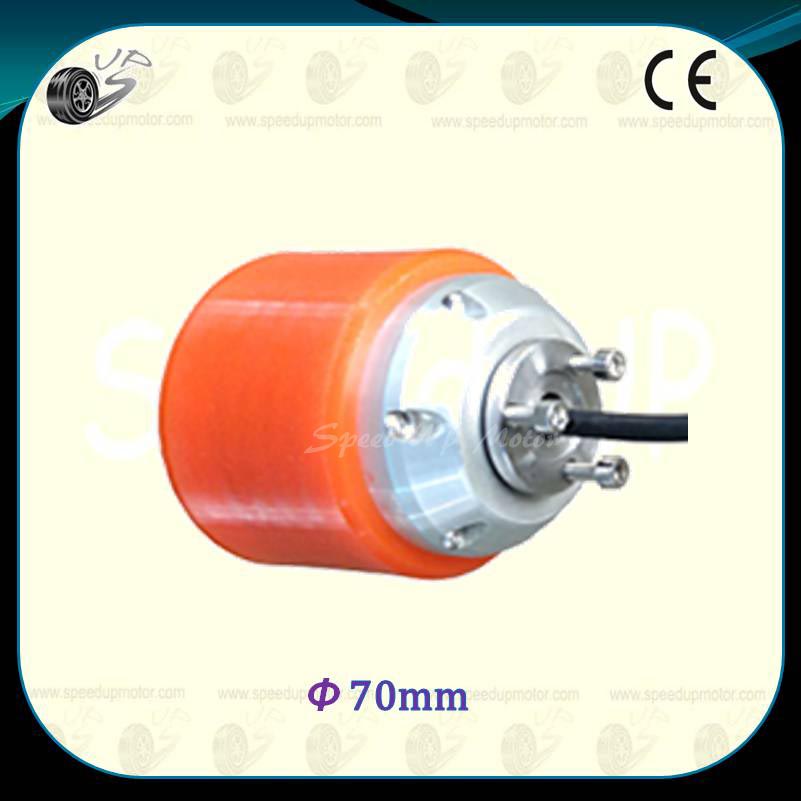

Motor Diameter:  70mm(include tire)
Tire wide:  52mm
No load Speed:  24V900rpm(0.35A) 36V1350rpm(0.38A)  48V1850rpm(0.42A)
Rated speed  700-1800rpm
Rated Torque:  3-5NM
Cable Length:  20-50cm
Shaft dia:  M17
Corresponding Controller:  24/36/48V small power Controller
Hall Sensor Quantity:  3pcs

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurationssuit-case-luggage-carrier-brushless-dc-hub-motor-mini-single-shaft%ef%bc%8c60h01-1 suit-case-luggage-carrier-brushless-dc-hub-motor-mini-single-shaft%ef%bc%8c60h01-2
