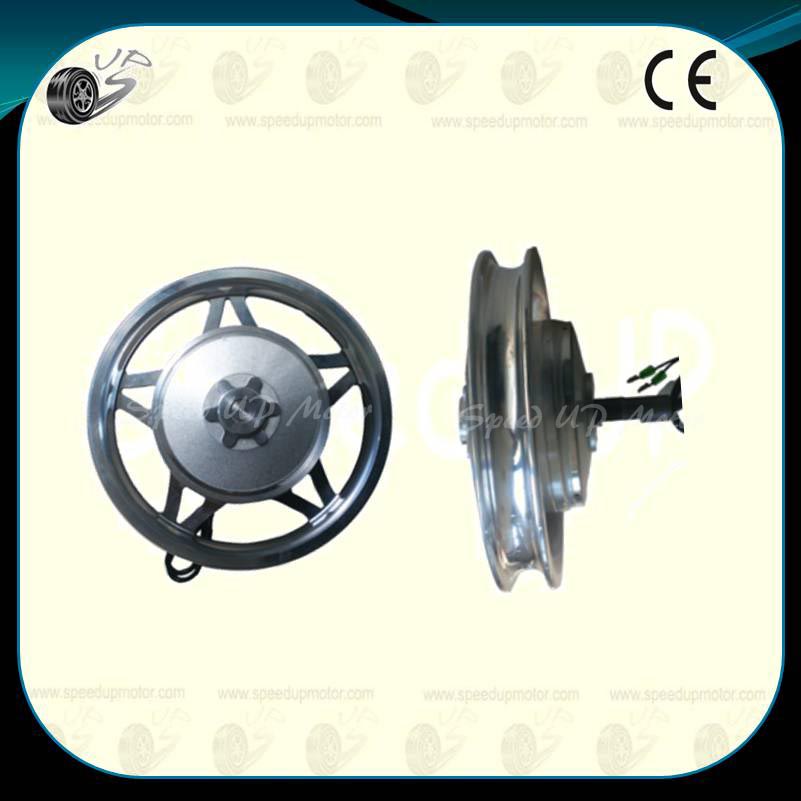

Brushless Hub Motor Wheelchair DC Motor，12Inch Wheel,112H01

Brushless Hub Motor Wheelchair DC Motor，12Inch Wheel,112H01
brushless wheelchair hub dc motor 12inch powered wheelbrushless electric wheelchair dc hub motor24v 36v Brushless Wheelchair hub dc motor

36V350W,450rpm
Single Shaft
Brushless DC Hub Motor

Most use in Electric Scooter/Vehicle/ATV/Wheelchair and so on.

Product Description

Specifications:

Voltage: 36V-96V
Power: 100W-500W
Motor Type: Brushless Hub Motor
Motor Net Weight: 3.2kgs
Motor Diameter: 12.8cm
Hall Sensor Quantity: 3pcs
Max. Speed: 450RPM OR Customized
Max. Torque: 24N.M
Magnet Body Size: 300*136*30mm
Axel Diameter: 1.5cm
Min. Fork Width Requirement:  Min.8.5-9.0cm
Corresponding Controller: 36V350W Controller
Available Wheel Size:  Fit with the bolt to the Wheel

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurationsBrushless Hub Motor Wheelchair DC Motor，12Inch Wheel,112H01 (1) Brushless Hub Motor Wheelchair DC Motor，12Inch Wheel,112H01 (2)
