Brushless DC Gear Motor Light Weight Permanent Magnet Motor,2DY-FG

brushless-dc-gear-motor-light-weight-permanent-magnet-motor2dy-fg
geared-brushless-dc-motor-180w-24vbrushless-geared-dc-motor24v-bldc-with-gearbox

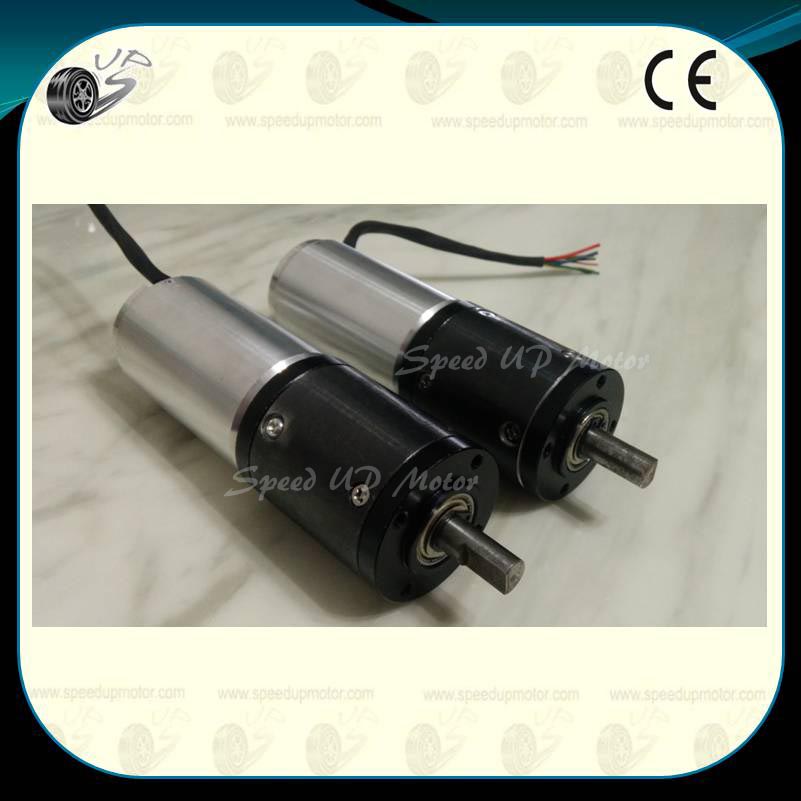

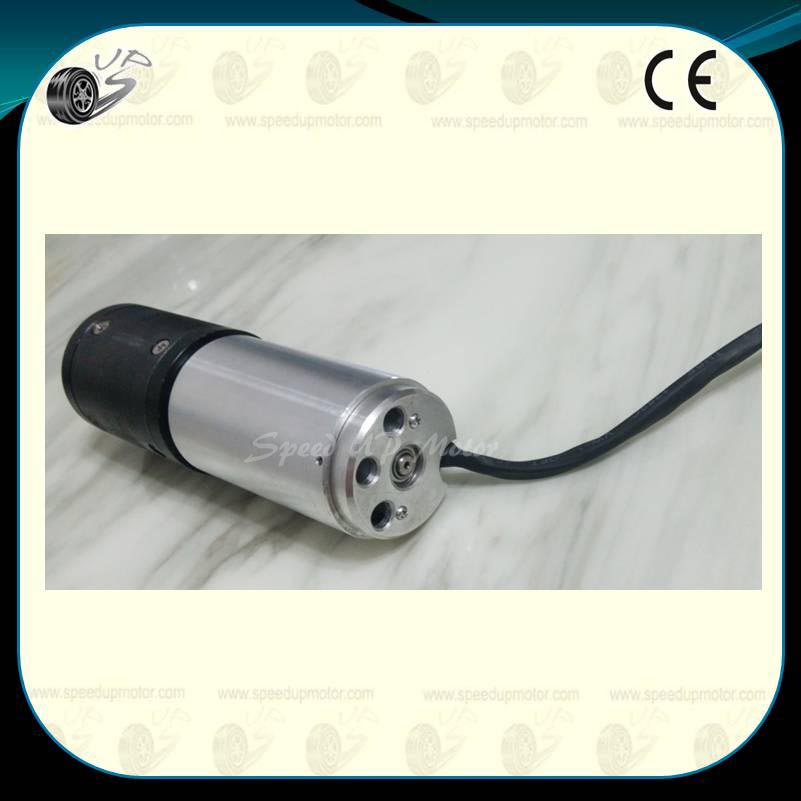

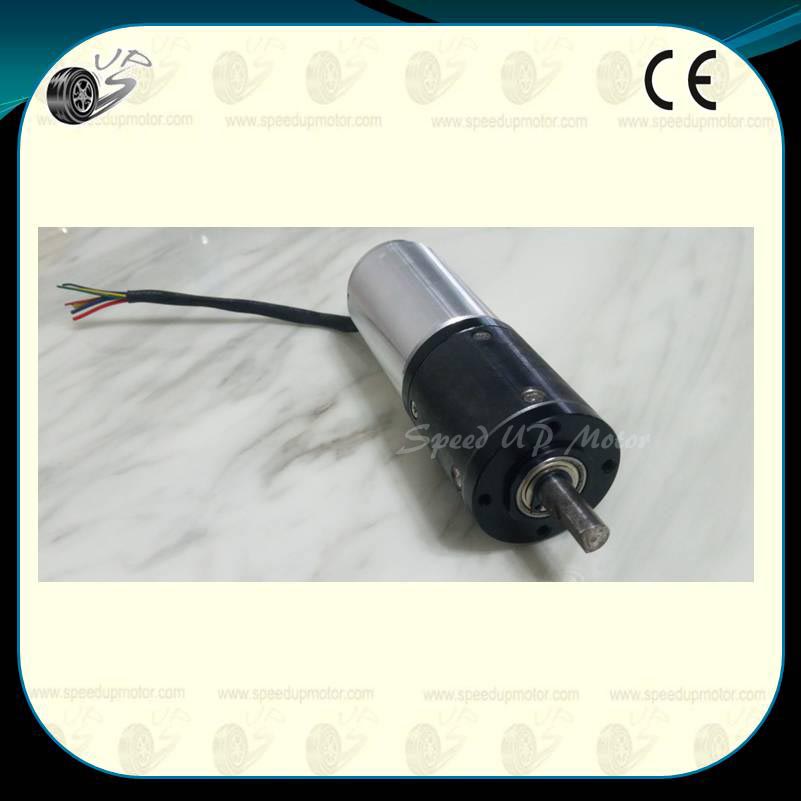

24V 180W,200RPM, BLDC Motor
Mini Size with Gearbox

Most use in Industrial Machine, Robot and So on.

Product Description

Specifications:

 Product types: BLDC motor
 Model:  2DY-FG
 Rated power:  180W
 Rated voltage:  24 (V)
 Rated speed  200RPM
 Custom made:  Yes

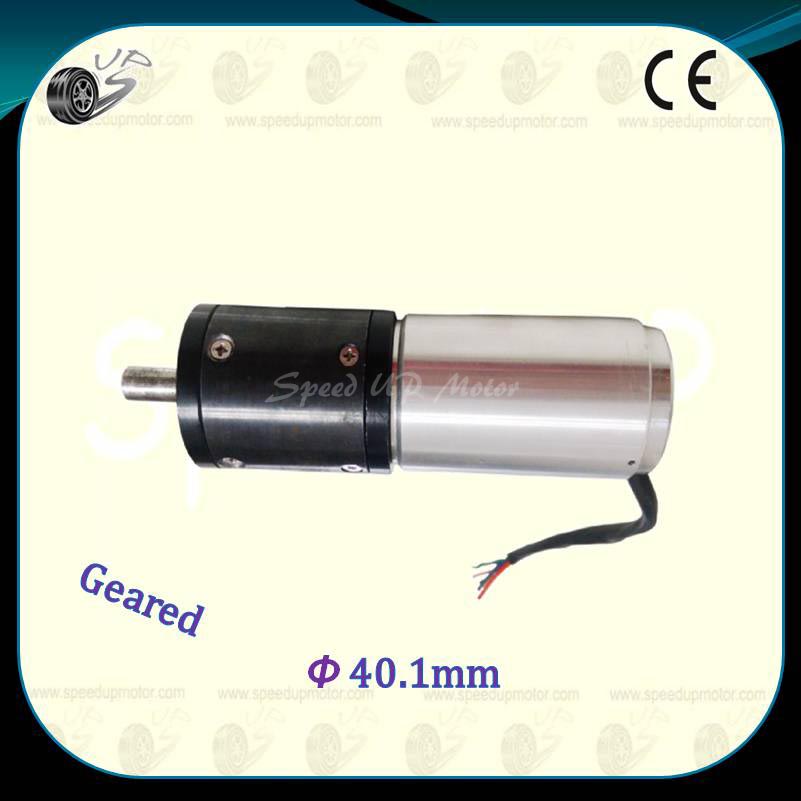

 Diameter:  40.1mm
Diameter for axis  4mm
 Motor length  151.5mm
 Output axis length  22mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Low speed high power operation, can save the reducer directly drive big load;

*Soft start soft stop, brake performance is good, can save the original mechanical brake or electromagnetic braking device

*High efficiency, no excitation loss of the motor itself and carbon brush loss, eliminating the multilevel reduction consumption, comprehensive energy saving rate can reach 20%~60%

*High reliability, good stability, strong adaptability, simple repair and maintenance;

*Bump resistance vibration, low noise, small vibration, smooth operation, long service life;

*No spark, especially suitable for the places with explosive, explosion proof type;

brushless-dc-gear-motor-light-weight-permanent-magnet-motor2dy-fg-1 brushless-dc-gear-motor-light-weight-permanent-magnet-motor2dy-fg-2
