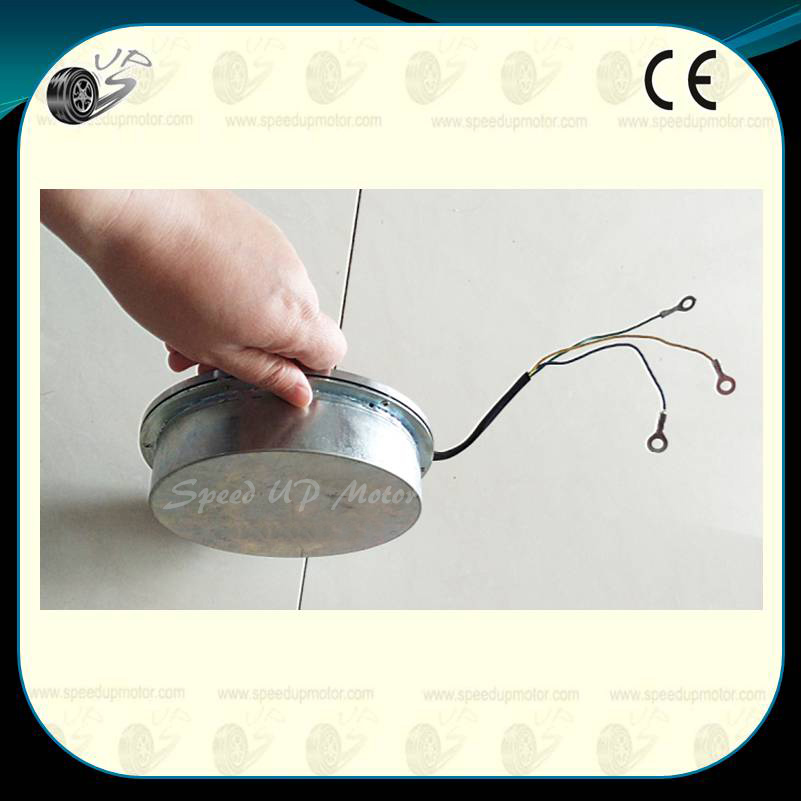

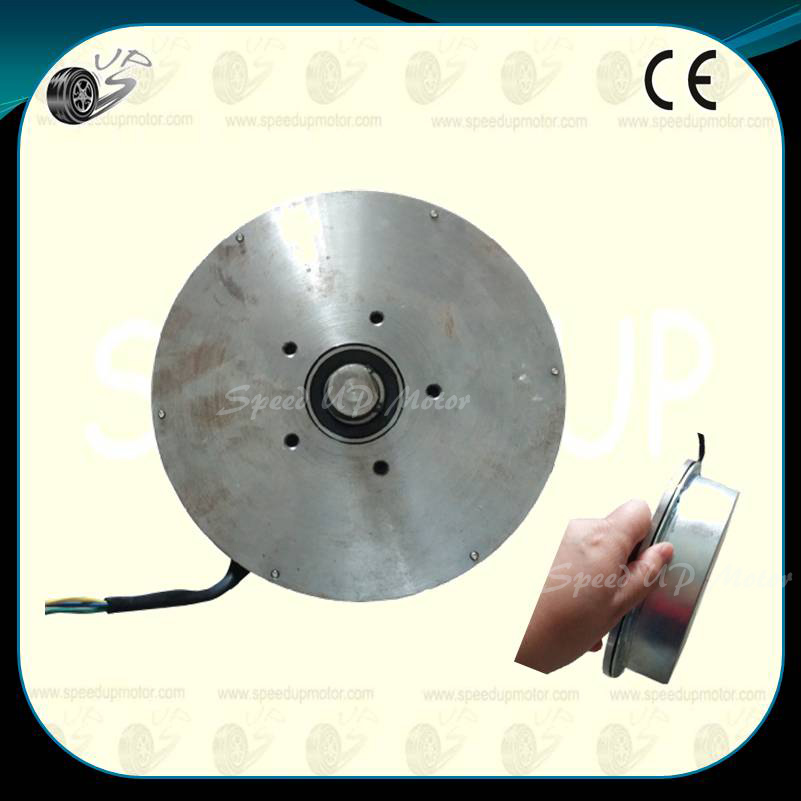

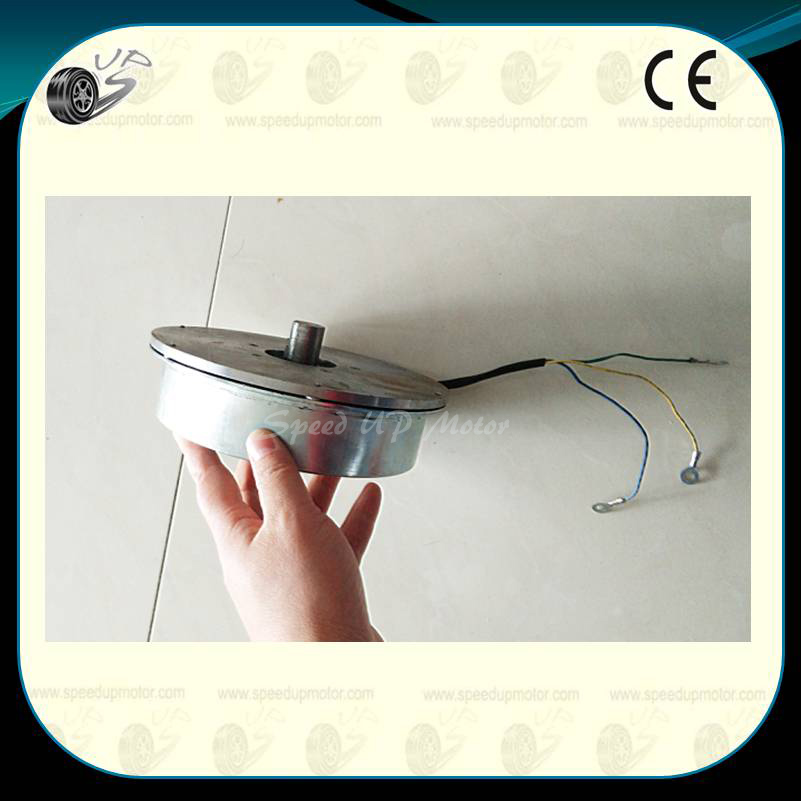

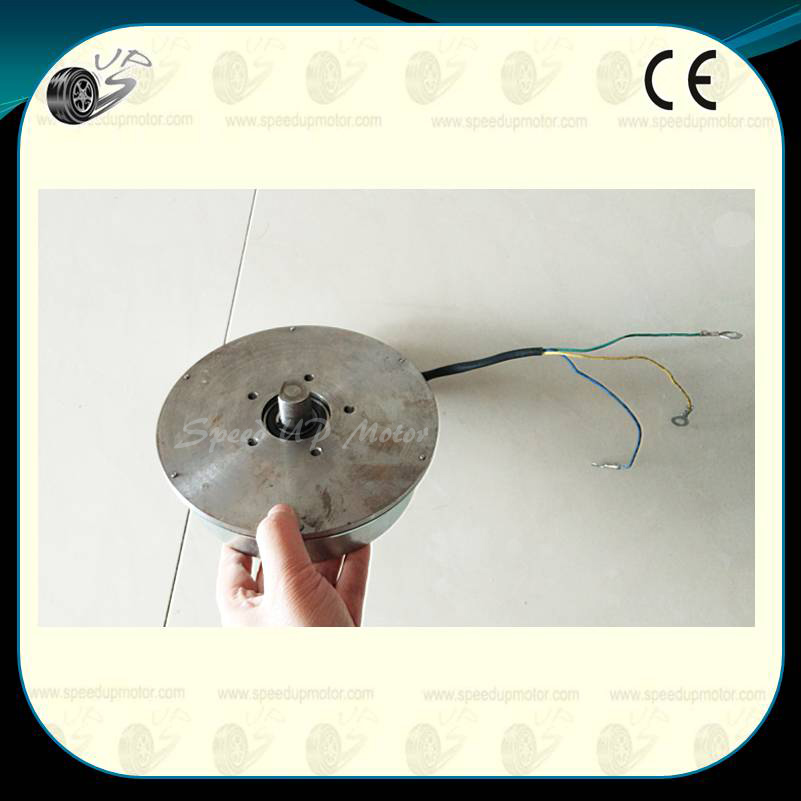

24V300W, 130RPM BLDC Motor
14NM Big Torque DD Pancake
170mm Dia
Widely used in machine tools, machining centers, metallurgy, electronics and precision machine embroidery, various scanning mechanism, precision PTZ (monitor), high-precision machine tools, radar, robots
- Brushless drive DC motor
- Direct Drive Rotary Motor
- Low Speed , Big Torque ;
- Low noise, small vibration, smooth operation
Product Description
Specifications:
| Product types: | BLDC Motor |
| Model: | DD01 |
| Rated power: | 300W |
| Rated voltage: | 24V |
| Rated speed: | 130rpm |
| Custom made: | Yes |
| Diameter: | 170mm |
| Diameter for axis | 20mm |
| Motor length | 54mm |
| Output axis length | 20mm |
Design Options:
- Operating voltages to suit
- Custom shaft sizes/profiles
- Tailored performance profiles
- Special OEM configurations
Big Torque, slow speed, stable, or without gear reduction mechanism
Return by eliminating errors caused by the gear reduction mechanism
Direct drive motor can be used to rotate the platform, such as a large head, generally designed to be larger in diameter, flat circular motor
