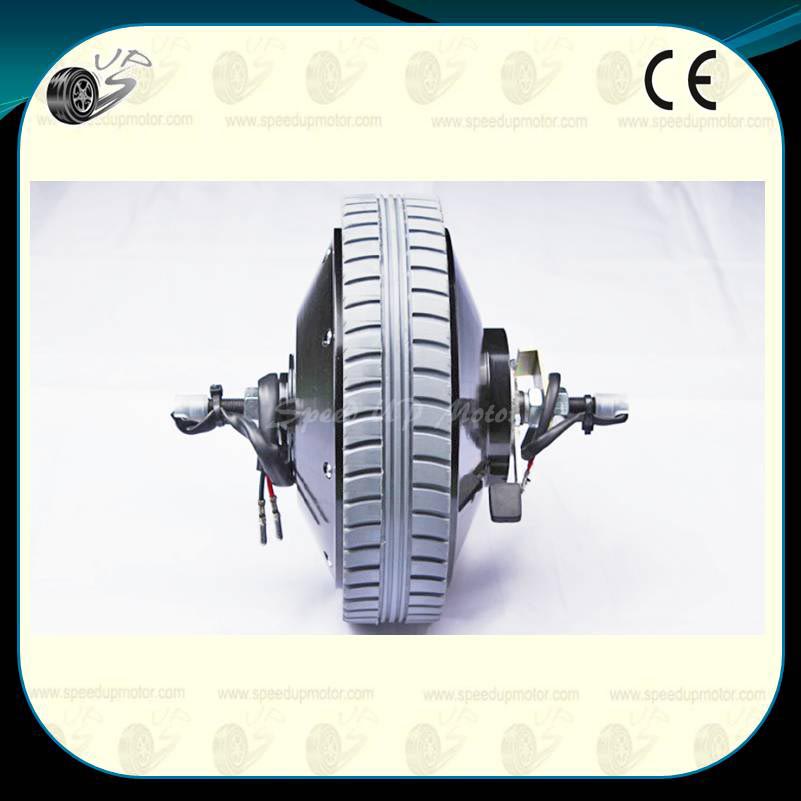

24V200W, 180RPM,13NM DC Brushed Hub Motor

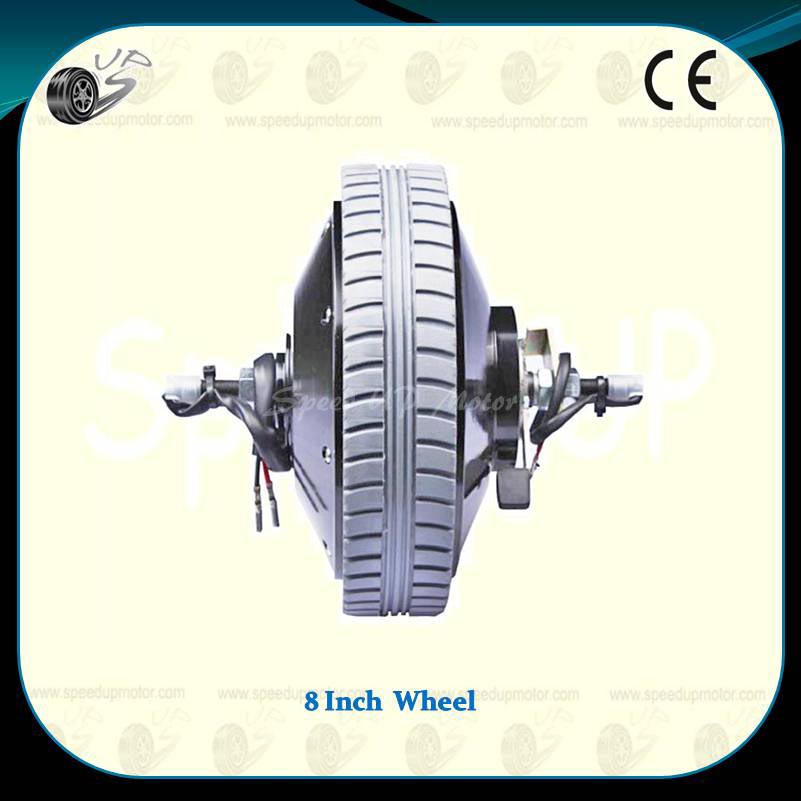

8Inch Powered Wheel with EMB Brake
Most use in Electric Vehicle, Mecical bed/Hospital Bed/ Electric Forklift and So on.
- Double output Axis ,electromagnetic brake and manual clutch brake.
- Bigger starting torque, wide speed range.
- Low speed running and good performance for commutation ability
- Small volume and high efficiency
- Rated voltage can be 24V/36V
- Rated output power can be 180/200/250/300W
- Rated speed 70/100/130/180rpm or customized
Product Description
Specifications:
| Product types: | Brush DC HUB motor |
| Model: | 1DY-E2A |
| Rated power: | 200W |
| Rated voltage: | 24V |
| Rated speed | 180RPM |
| Custom made: | Yes |
| Diameter: | 210mm |
| Thickness: | 143.6mm |
| Output axis | Double |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis) sizes/profiles
- Tailored performance profiles
- Special OEM configurations
- Gear ratio selections
Competitive Advantage:
* Use thin plate-type printed armature winding
* High strength and wear-resistant gear shifting system.
* Built-in brake with electromagnetic clutch,and support manual clutch.
* Bigger starting torque, wide speed range.
* Low speed running and good performance for commutation ability
* Small volume and high efficiency
