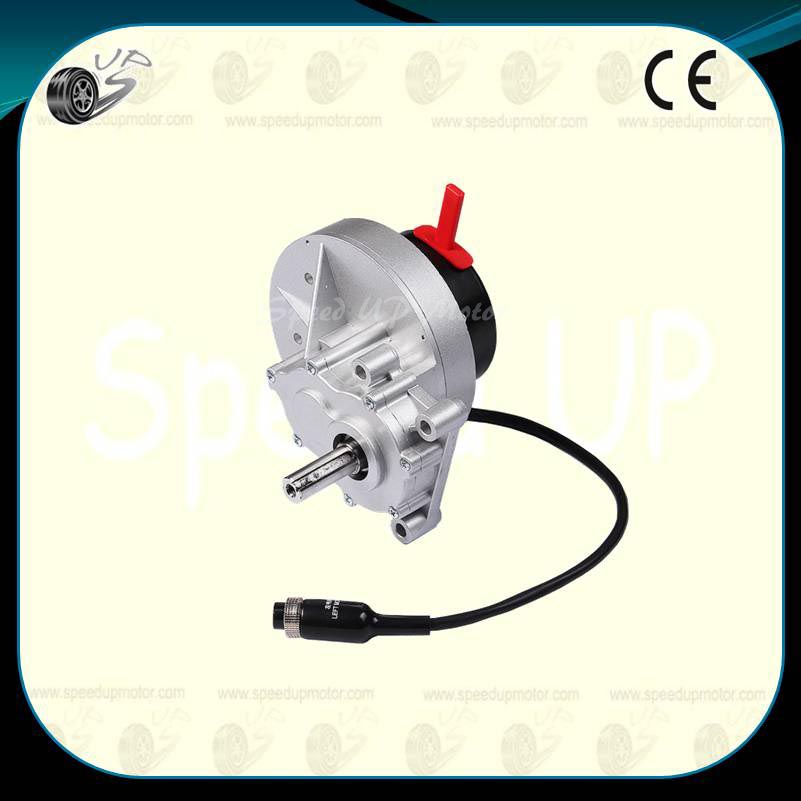

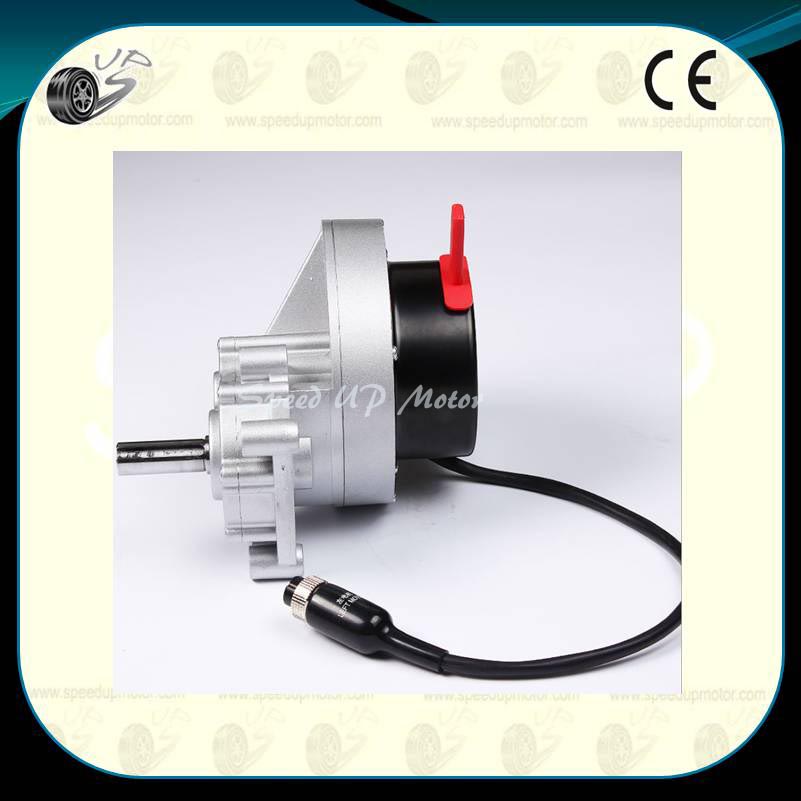

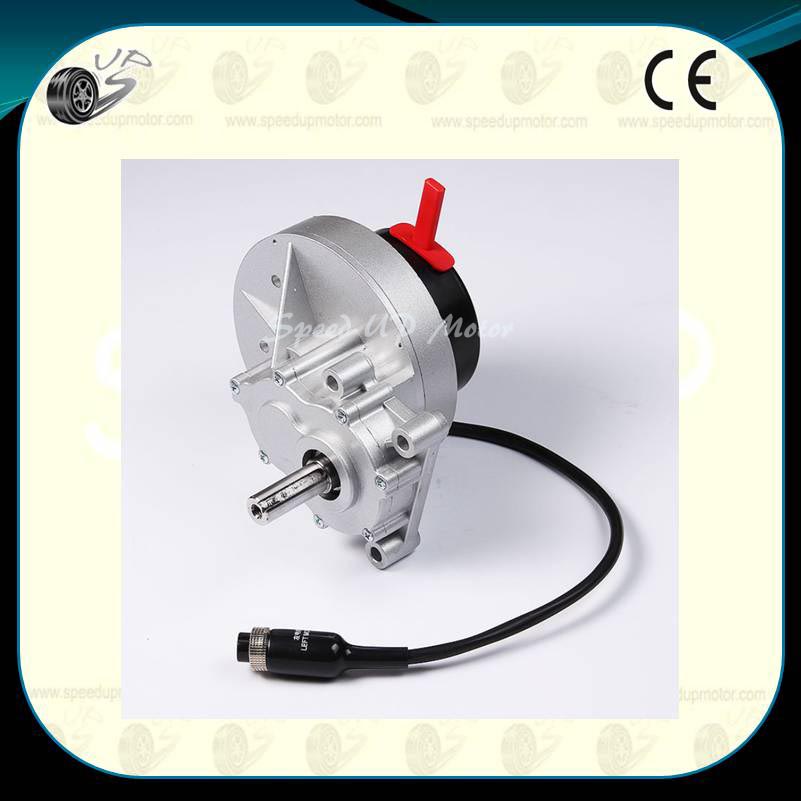

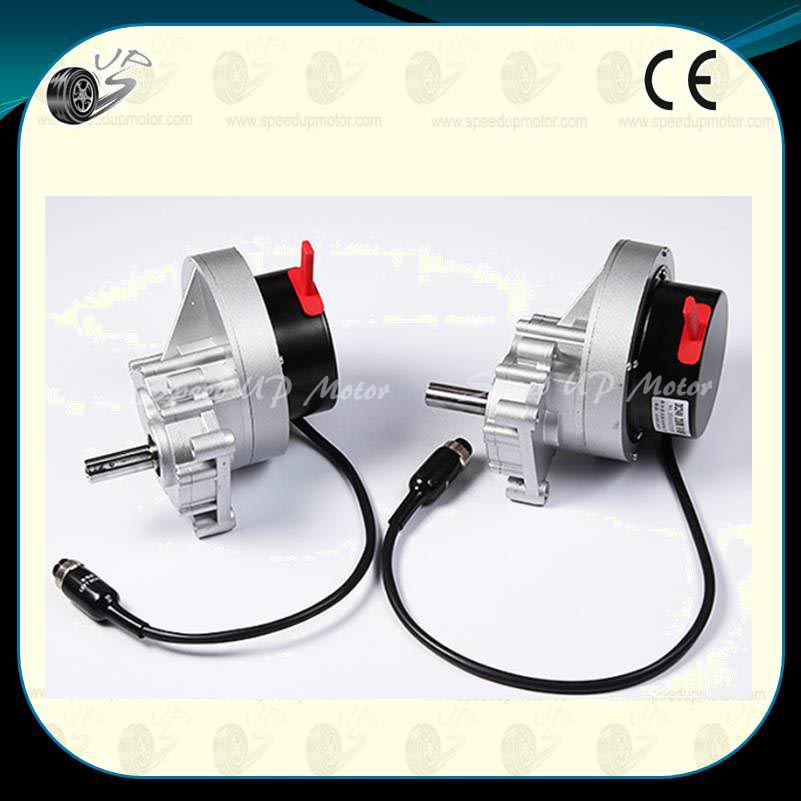

70 RPM 24V Brush Wheelchair Hub DC Motor With EMB Brake,6DY-A8

70 RPM 24V Brush Wheelchair Hub DC Motor With EMB Brake,6DY-A8
single output axis brush wheel chair motormini motor,brush wheelchair hub dc motorbrushed printed winding dc wheelchair motor 6dy-a8

24V200W, 70RPM, 30nm Big Torque
Wheelchair Motor with Single Axis/EMB Brake/Hand lever

Most use in Electric Vehicle/ Wheelchair and So on.

  • Single output Axis ,electromagnetic brake and manual clutch brake.
  • Wheelchair Hub Motor
  • Small Noise.
  • Good performance for commutation ability
  • Small volume and high efficiency

Product Description

Specifications:

Product types:  Wheelchair motor
 Model:  6DY-A8
 Rated power:  200W
 Rated voltage:  24V
 Rated speed  70RPM
 Custom made:  Yes
Rated torque:   30NM
  Corrent   Less than 17A
 Output axis  Single

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations
  5. Gear ratio selections

Competitive Advantage:

* Use thin plate-type printed armature winding

* High strength and wear-resistant gear shifting system.

* Built-in brake with electromagnetic clutch,and support manual clutch.

* Bigger starting torque, wide speed range.

* Low speed running and good performance for commutation ability

* Small volume and high efficiency 70 RPM 24V Brush Wheelchair Hub DC Motor With EMB Brake,6DY-A8 (1) 70 RPM 24V Brush Wheelchair Hub DC Motor With EMB Brake,6DY-A8 (2)
