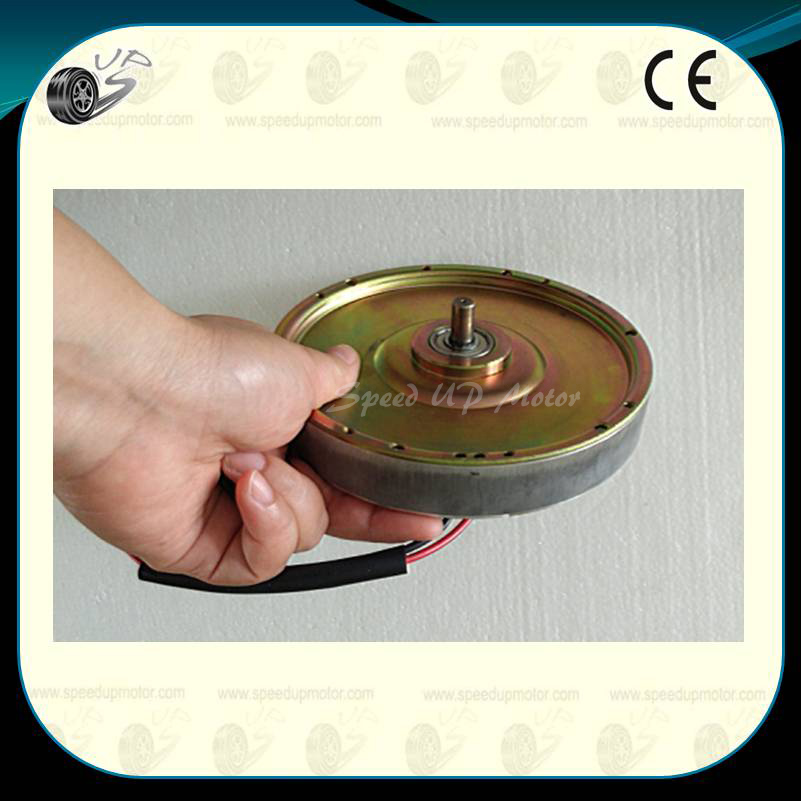

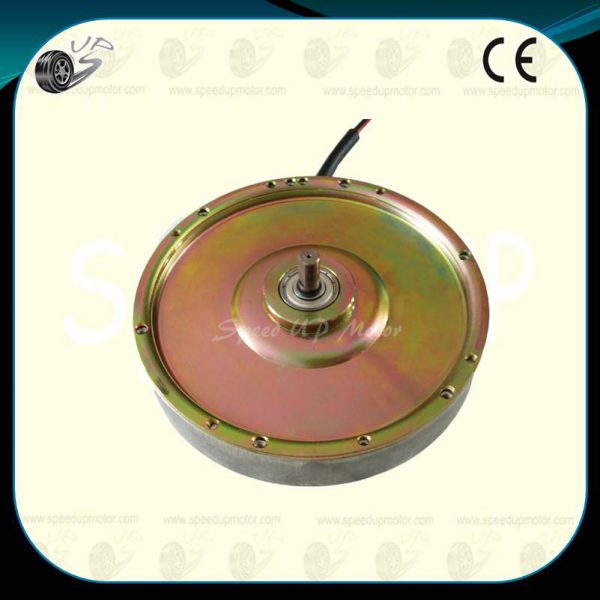

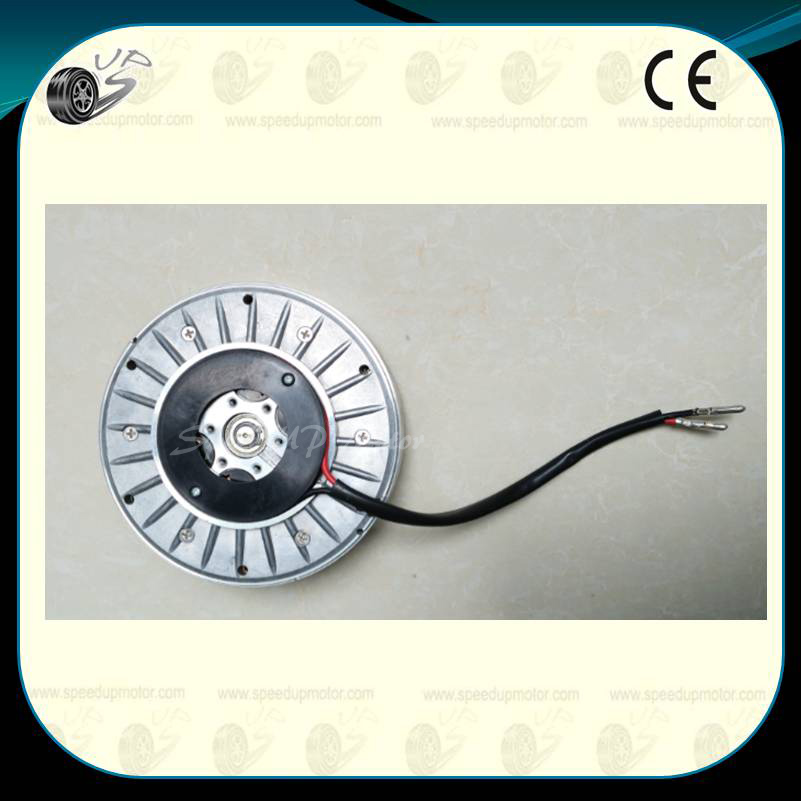

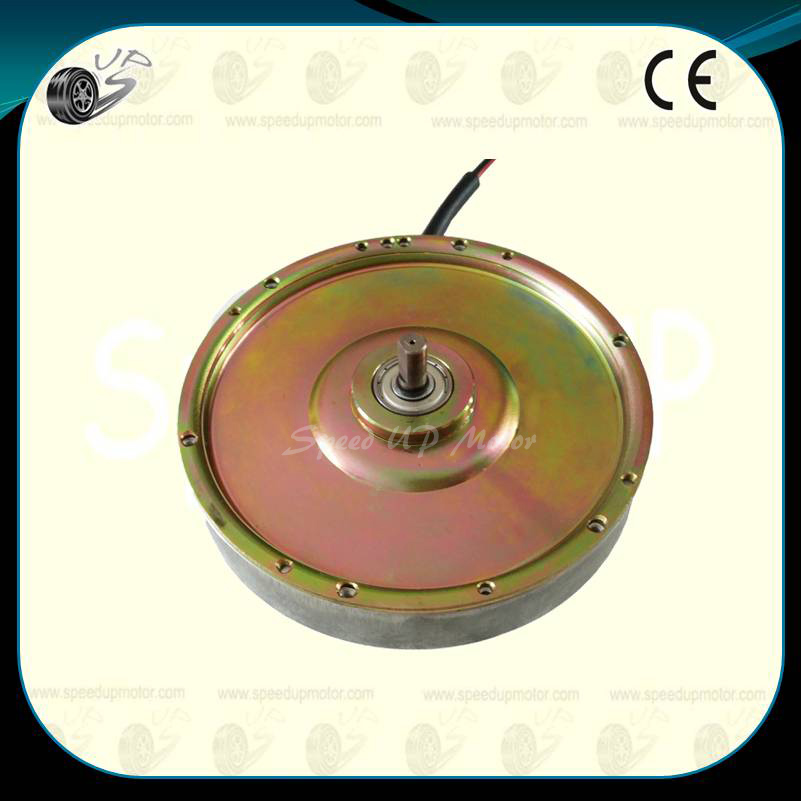

36V300W, 3500RPM Printed Armature Motor
151mm Dia Pancake Flat Motor
Most use in Industrial Machine、Washing Machine、Speical Powered Wheel and So on.

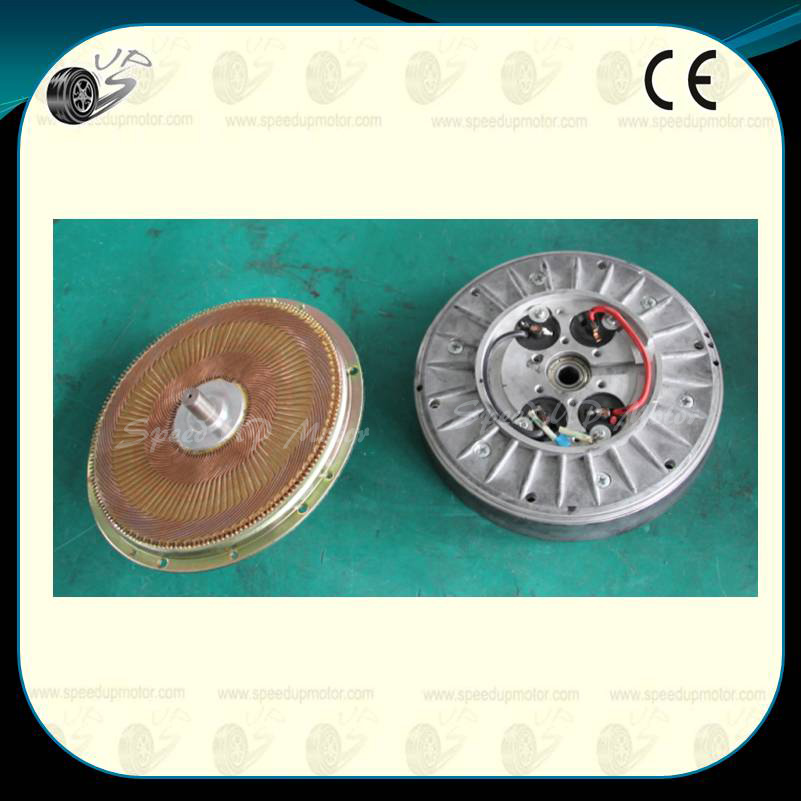

- Flat armature technic
- Ultra slim profile
- Long service life of brush
- Low moment of inertia
- More uniform torque
- Have higher overload capacity at moment
- Direction change of no spare
- Speedy response
- Low inductance
Product Description
Specifications:
| Product types: | Printed DC Motor |
| Model: | 150SN-A |
| Rated power: | 300W |
| Rated voltage: | 36V |
| Rated speed: | 3500rpm |
| Custom made: | Yes |
| Diameter: | 151mm |
| Thickness: | 35.5mm |
Design Options:
- Operating voltages to suit
- Custom shaft sizes/profiles
- Tailored performance profiles
- Special OEM configurations
Competitive Advantage:
*Light weight, Small volume.
*Big starting torque, Wide speed range.
*Low speed operation and good reversing performance.
*Well-developed production technology and the introduction of production line
