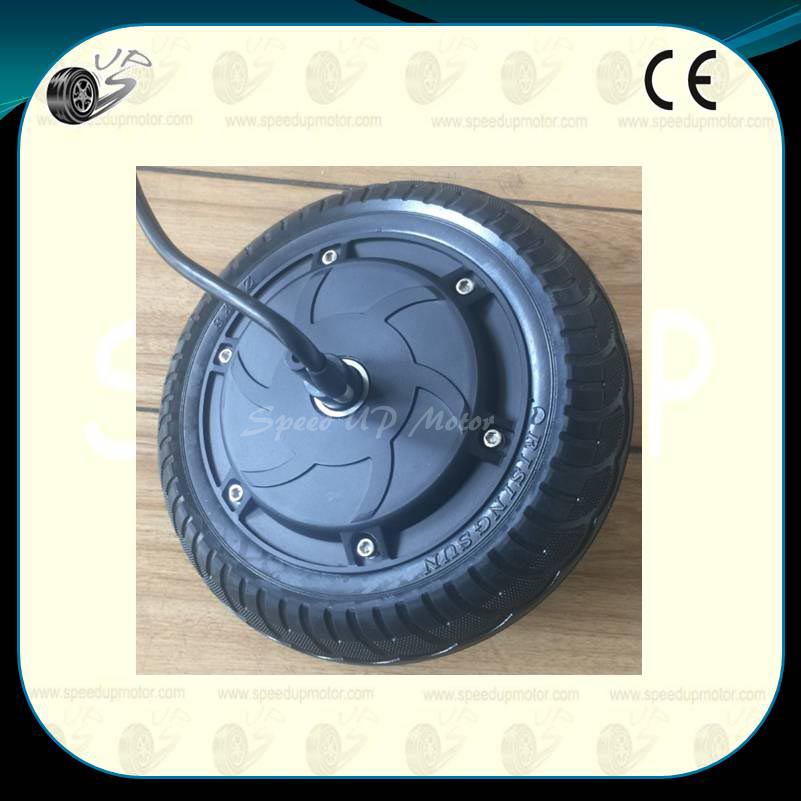

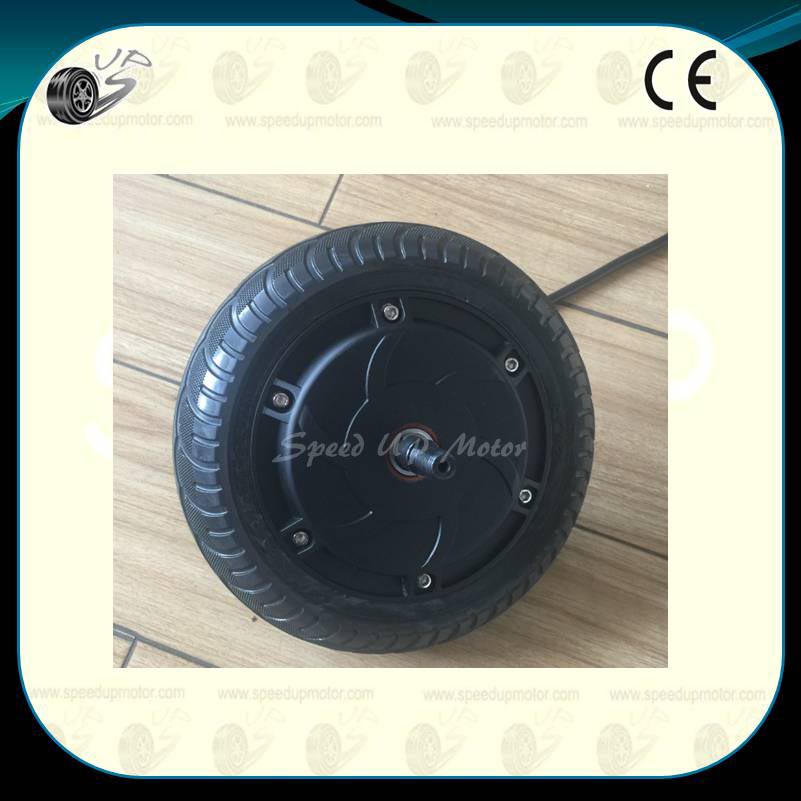

36V 250W Brushless Gearless Hub Motor With Solid tyre,SA01

36v-250w-brushless-gearless-hub-motor-with-solid-tyresa01
solid-tyre-electric-scooter-hub-motor8inch-wheel-brushless-hub-motor8inch-solid-tyre-with-brushless-hub-motor

36V250W,500RPM

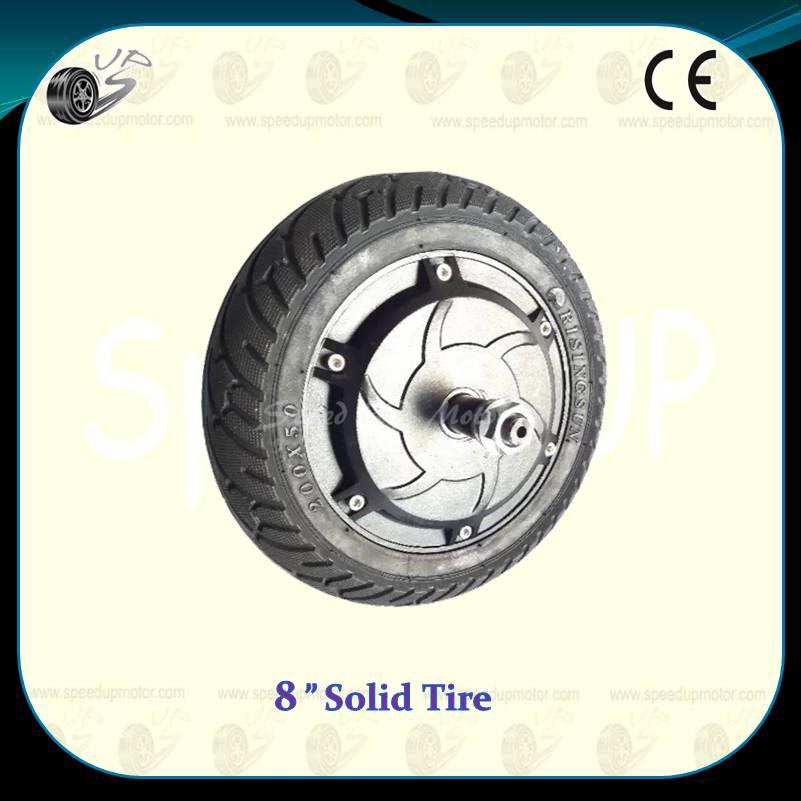

8Inch Solid Tyre
Brushless Gearless Wheel Hub DC Motor
Front/Rear Drive

Most use in Electric Scooter/Vehicle and So on.
Can be 36V250W,36V350W,36V300W,48V250W,48V300W,48V350W

Product Description

Specifications:

Voltage:  36V
Power:  250W
Motor Type:  Brushless Gearless Hub Motor
Net Weight:  4kgs (include Solid tyre)
Diameter:  200mm
Motor shaft diameter:  M14
Motor shaft length:  148mm
Motor cable length:  50-120cm
Hall Sensor Quantity:  3pcs
Rated Speed:  500-900RPM
Rated Torque:  15-25N.M

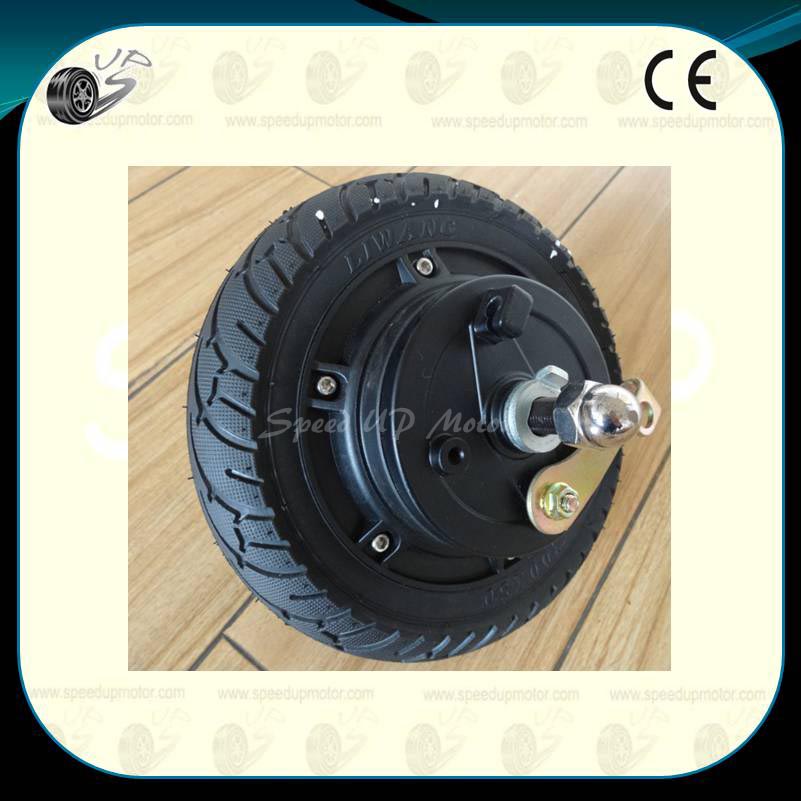

Brake:  Disc Brake
   Drum Brake for option
Min. Fork Width Requirement:  Min.106mm
Corresponding Controller:  36V350W Controller
Tire wide:  50mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations36v-250w-brushless-gearless-hub-motor-with-solid-tyresa01-1 36v-250w-brushless-gearless-hub-motor-with-solid-tyresa01-2
