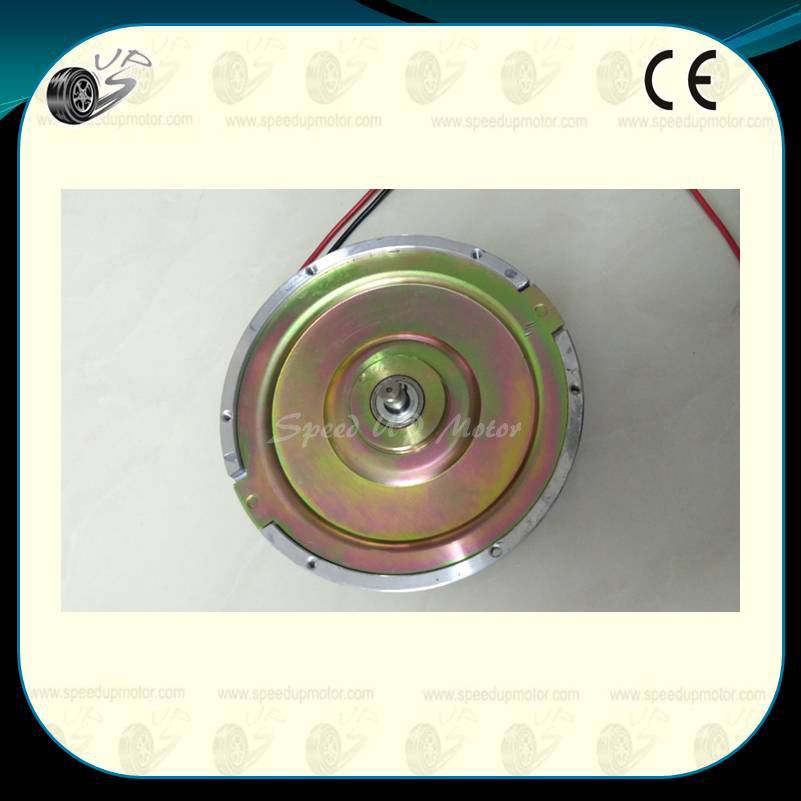

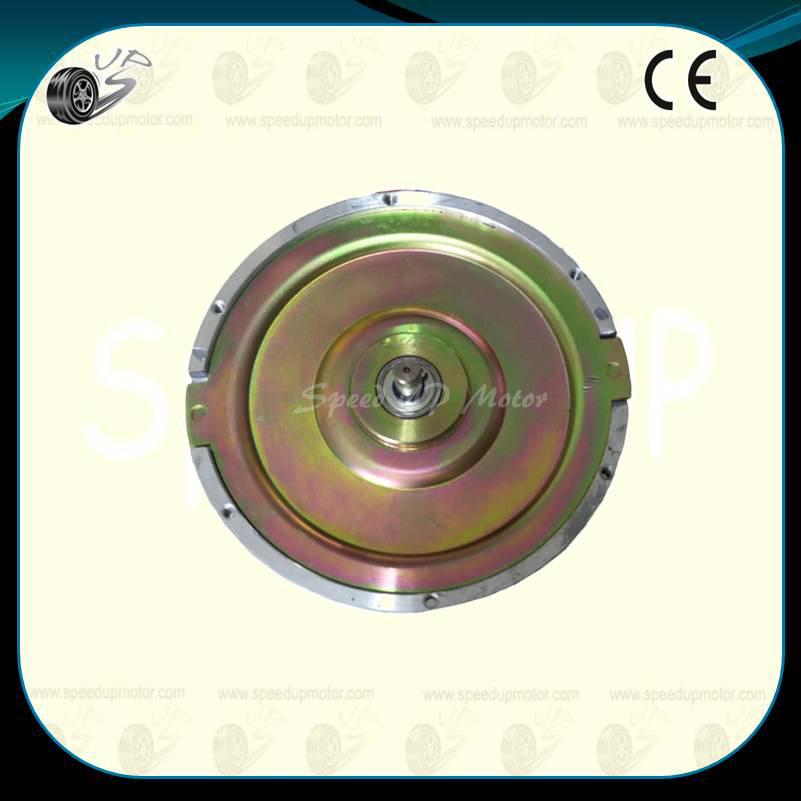

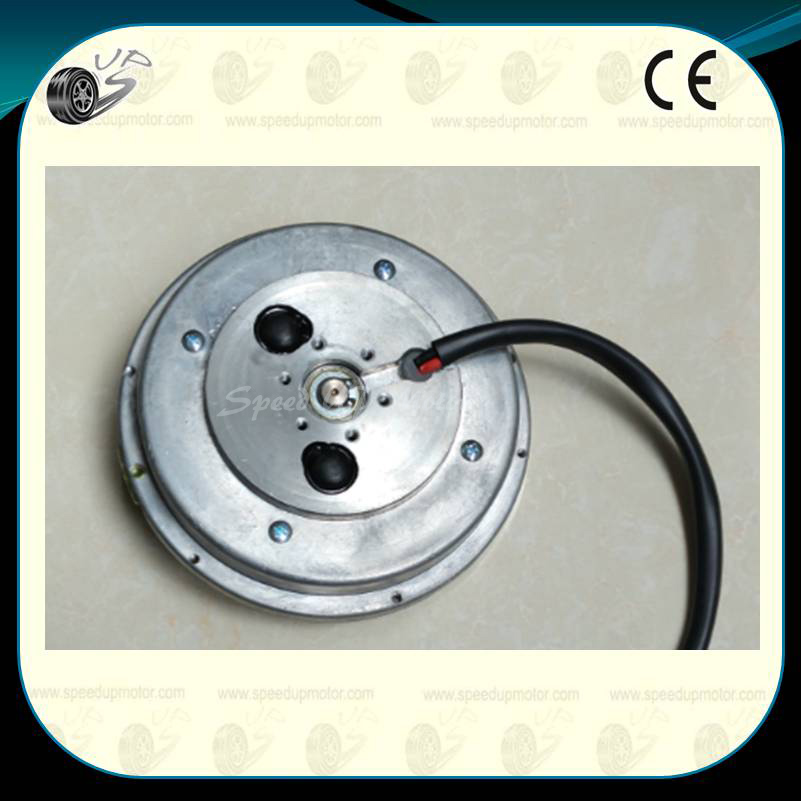

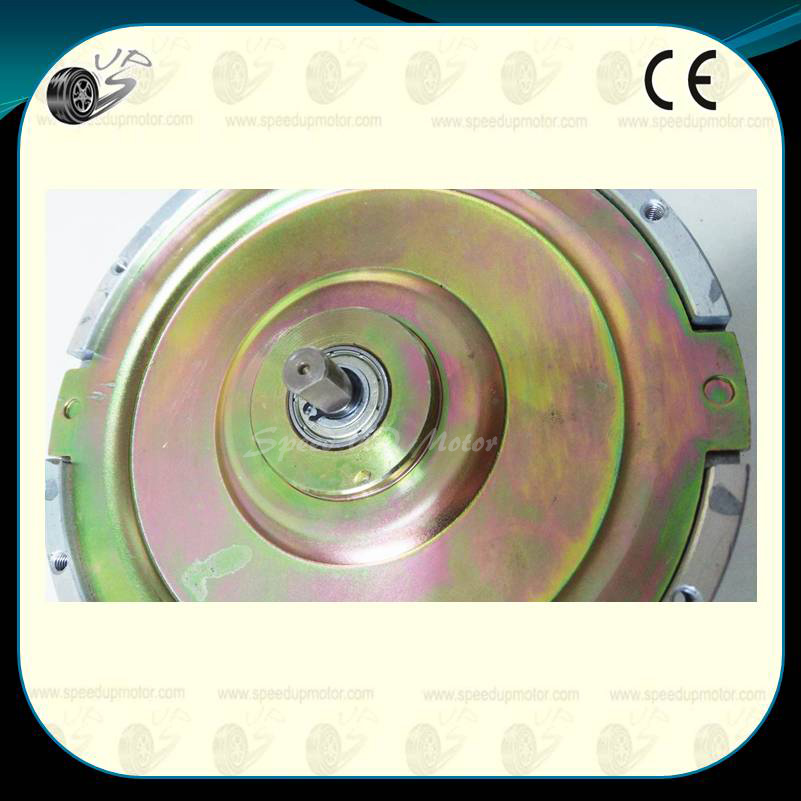

12V50W, 1800RPM Printed Armature Motor
148.5mm Dia Pancake Flat Motor
Most use in Industrial Machine、Washing Machine、Speical Powered Wheel and So on.
- Flat armature technic
- Ultra slim profile
- Long service life of brush
- Low moment of inertia
- More uniform torque
- Have higher overload capacity at moment
- Direction change of no spare
- Speedy response
- Low inductance
Product Description
Specifications:
| Product types: | Printed DC motor |
| Model: | 128SN-A2 |
| Rated power: | 50W |
| Rated voltage: | 12V |
| Unloaded speed: | 1800rpm |
| Custom made: | Yes |
| Diameter: | 148.5mm |
| Thickness: | 33.9mm |
Design Options:
- Operating voltages to suit
- Custom shaft sizes/profiles
- Tailored performance profiles
- Special OEM configurations
Competitive Advantage:
*Light weight, Small volume.
*Big starting torque, Wide speed range.
*Low speed operation and good reversing performance.
*Well-developed production technology and the introduction of production line
