24V180W, 100RPM

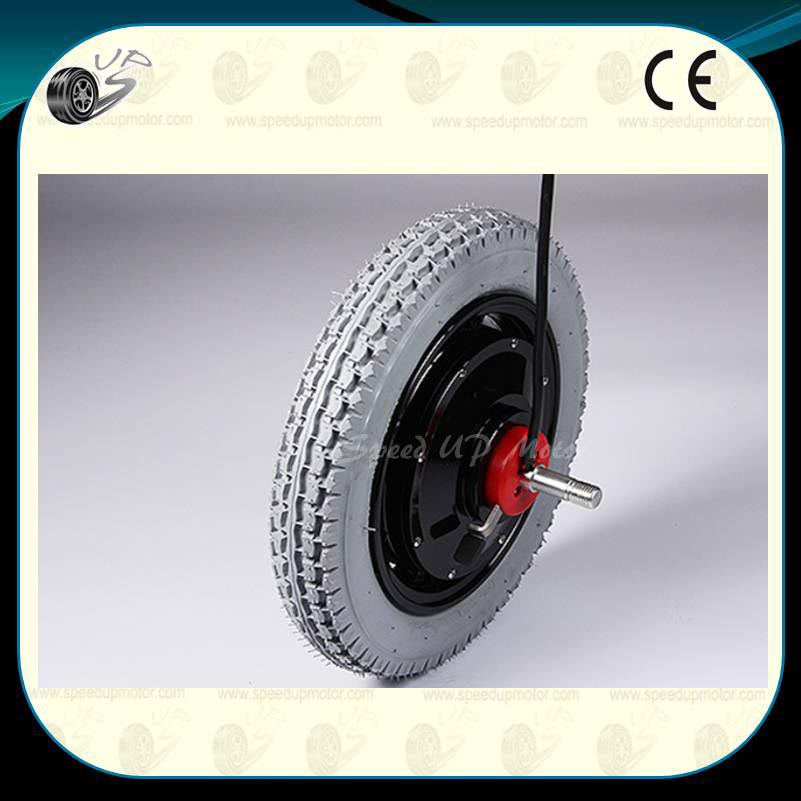

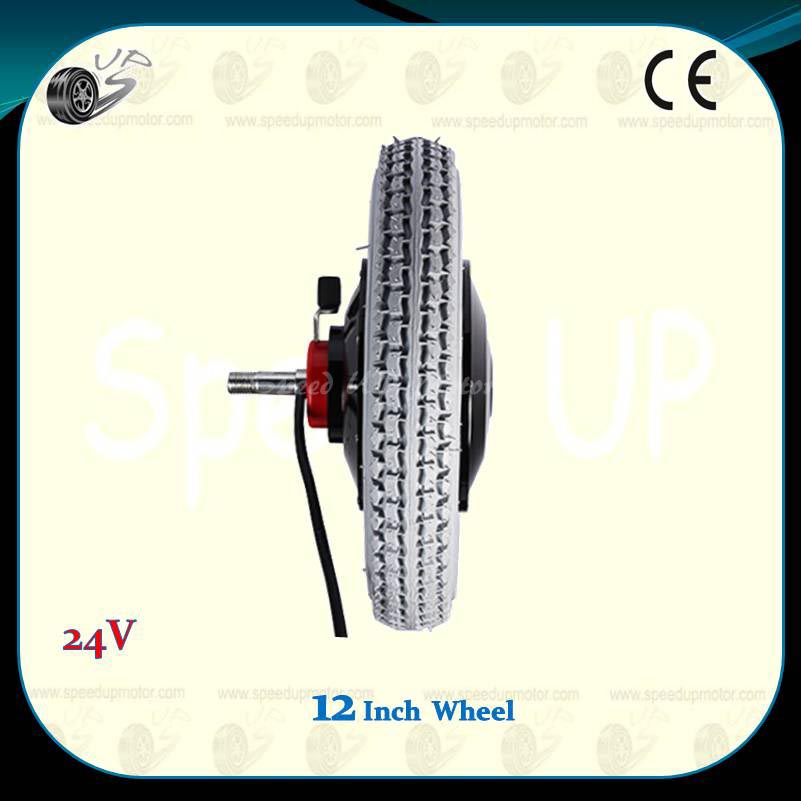

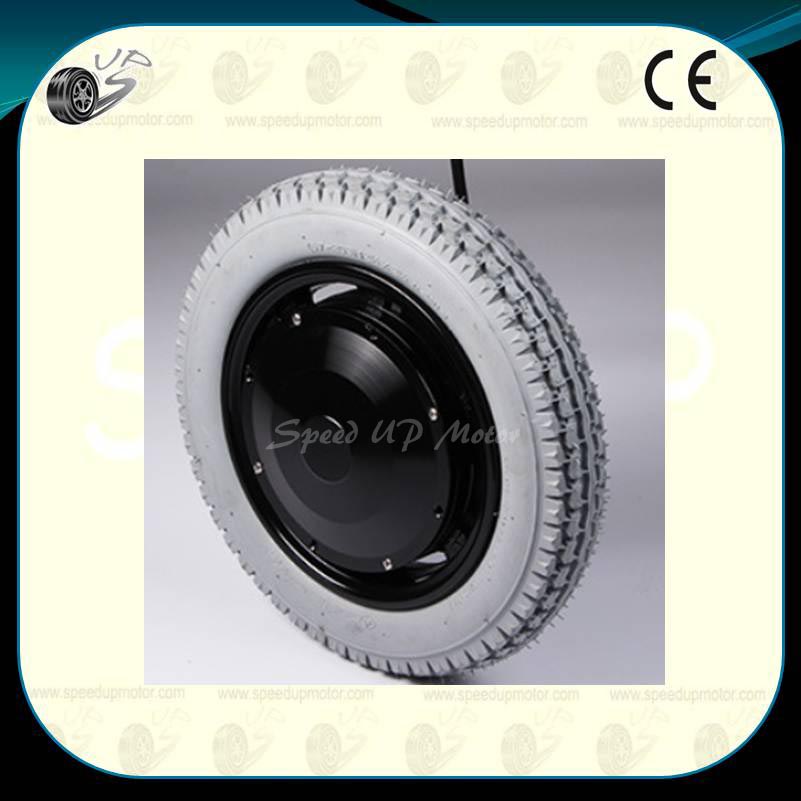

12 Inch Powered Wheel with Single Axis/EMB Brake/Hand lever
Most use in Electric Vehicle/ Wheelchair and So on.
- Single output Axis ,electromagnetic brake and manual clutch brake.
- Wheelchair Hub Motor
- Small Noise.
- Good performance for commutation ability
- Small volume and high efficiency
Product Description
Specifications:
| Product types: | Brush DC HUB motor |
| Model: | 6DY-A4 |
| Rated power: | 180W |
| Rated voltage: | 24V |
| Rated speed | 100RPM |
| Custom made: | Yes |
| Diameter: | 304.8mm |
| Thickness: | 130.2mm |
| Output axis | Single |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis) sizes/profiles
- Tailored performance profiles
- Special OEM configurations
- Gear ratio selections
Competitive Advantage:
* Use thin plate-type printed armature winding
* High strength and wear-resistant gear shifting system.
* Built-in brake with electromagnetic clutch,and support manual clutch.
* Bigger starting torque, wide speed range.
* Low speed running and good performance for commutation ability
* Small volume and high efficiency
